When using GLC2400 or 2600,[Rev.*-None or 1] or [Rev.-2 or above] is shown.

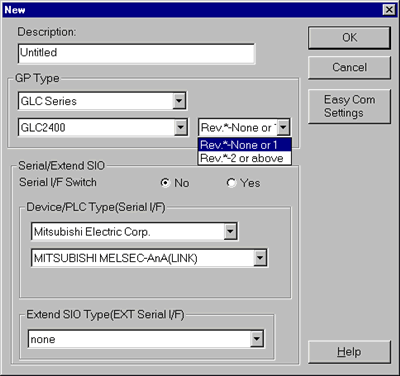

When setting [GP type] as GLC2400 or GLC2600 at GP-PRO/PB3 C-Package03, [Rev.*-None or 1] or [Rev.-2 or above] pulldown menu is shown. This means the revision of the GLC hardware. The supported features of each revision differs.


How to Read the Code

-

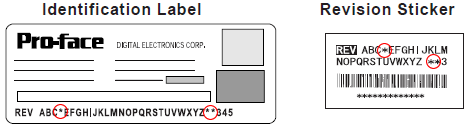

The revision code can be easily found using the GLCunit’s rear face identification label or revision sticker. In the area titled “REV”, the code is indicated by asterisks (*) or marked with a marker pen.
In the example below, asterisks (*) are placed at positions “D”, “1”, and “2”, which indicates the revision version as “D-2”.



-
Revision Categories

[Rev.*-None or 1]
The revision code is not used, or is “1”.
[Rev.-2 or above]
The revision code is "2" or higher.

The difference between [Rev.*-None or 1] and [Rev.-2 or above]


Instruction

[Rev.-2 or above] supports a SCL instruction (scaling feature) or function control instructions. >>Refer

Variable

The variable storage memory in GLC of [Rev.-2 or above] is 64K byte.You can set more variables than [Rev.*-None or 1].([Rev.*-None or 1] is 32K byte.)

GLC ladder monitor
[Rev.-2 or above] supports [Setup Value Edit Feature]. >> Refer
