FAQ
I would like to upload data stored in GP to PC.
There are 3 methods to upload data as following.
1.
Uploading SRAM data by operating Pro-Studio EX
2.
Uploading SRAM data by setting the ACTION function
3.
Uploading SRAM data by creating an own program

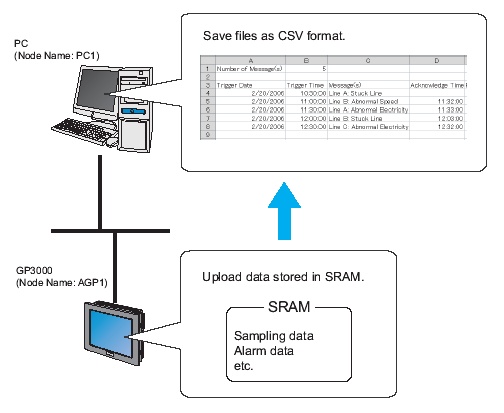

1.Uploading SRAM data by operating Pro-Studio EX
*
You can upload the data (such as sampling data, alarm data) saved in backup SRAM of GP as a CSV file according to the trigger condition.
Click here to refer to uploading SRAM data by operating Pro-Studio EX

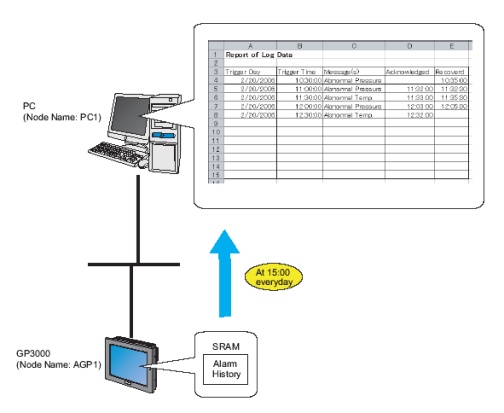

2.Uploading SRAM data by setting the ACTION function
*
You can upload the data (such as sampling data, alarm data) saved in back-up SRAM of GP as a CSV file or an XLS file according to the trigger condition.
Click here to refer to uploading SRAM data by setting the ACTION function
3.Uploading SRAM data by creating an own program
*
You can upload the data (such as sampling data, alarm data) saved in back-up SRAM of GP as a CSV file or a binary file by using API function.
Click here to refer to uploading SRAM data.
