How to Register Symbols? |
![](/images/shim.gif) |
You have to register Device Address inside GP and Device/PLC as "Symbol" for reads and write each Device Data. About Register Symbol, please follow descriptions bellow. |

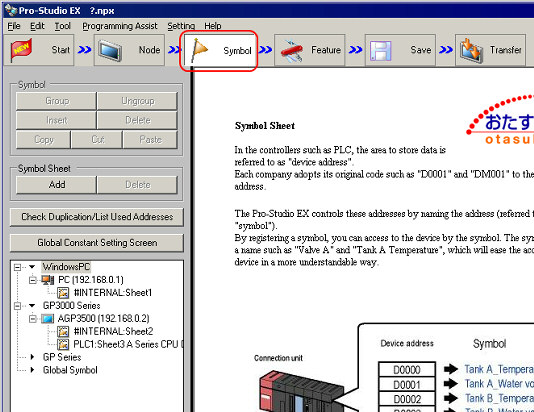

1. |
Click [Symbol] Icon on the status bar. |
|
![](images/symbal_1_01e.jpg) |
|
|

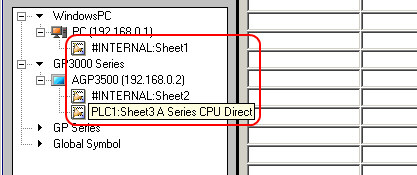

2. |
Select the Device/PLC (Sheet) in which you want to register symbols. |
|
![](images/symbal_1_02e.jpg)
*1 |
"GP3000 series" is separeting sheets name, "#INTERNAL" and "PLC*".
GPs internal address register to "#INTERNAL" sheet as a Symbol. PLC address register to "PLC*" sheet as a Symbol. |
*2 |
The Symbol sheet of "GP series" is only "#INTERNAL" sheet. You have to register to "#INTERNAL" sheet When register GP2000 series, GLC series and also Device/PLC connecterd FGW. |
|
|
|

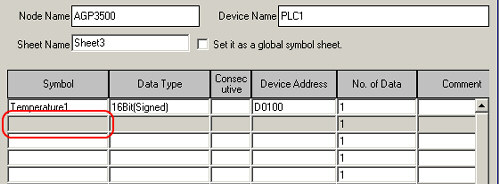

3. |
The Symbol sheetis appearing. Double-clike the Red Circle area. |
|
![](images/symbal_1_03e.jpg) |
|
|

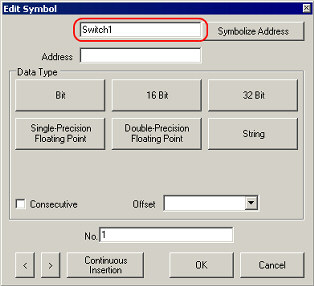

4. |
[Edit Symbol] Window is appearing. Enter Symbolize address that to be registed inside Red Circle area. |
|
*3 |
You can enter the number of charactor are up to 32words. |
*4 |
You cannot enter number at "Top" of Symbolize address. |
|
|
|

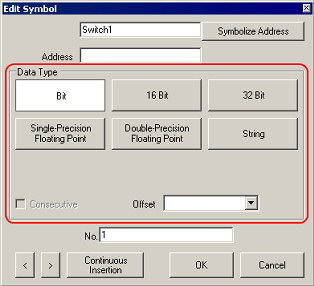

5. |
Setting the "Data Type". |
|
![](images/symbal_1_05e.jpg) |
|
|
6. |

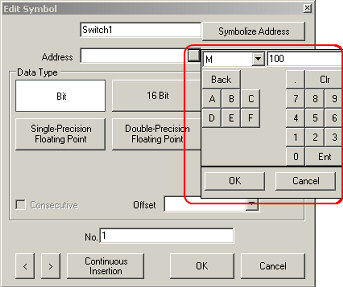

When you click the button of [Address], the Keypadis appearing. Enter the address as a device address to be registerd as a Symbol. |
|
![](images/symbal_1_06e.jpg) |
|
|

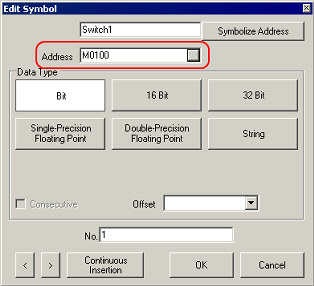

7. |
Click [OK] after displaying Device address at "Adress" window. |
|
![](images/symbal_1_07e.jpg) |
|
|

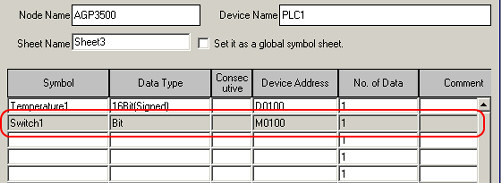

8. |
A Symbol was registerd. |
|
*5 |
You can share a registerd Symbol sheet between defferent Entry Node when you Check the box od "Set it as a global symbol sheet". Please refer to "Golbal Symbol sheet", click here |
|
|
|
MEMO |
・ |
Please check totaly after registerd Symbols. If the Symbol name or Device address are duplicated, "Pro-Server EX" would not operated correctly because of Error. Please refer to"Checking registerd synbols", click here |
・ |

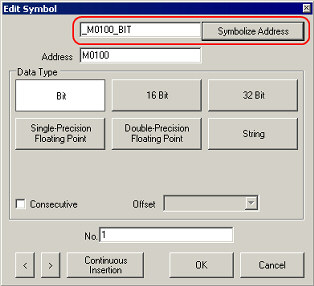

If you want toregister device address as a Symbol name not optional Symbol name, you can click [Simbolize Address] after stting "Address" and "Data type". The Device address and "Dara Type" are regisrerd as a "Symbol Name". |
|
![](images/symbal_1_09e.jpg) |
|
|
|
|
