 FAQ

How to adjust the brightness of the screen

Applicable Models
PL3000 series, PL-x930 series,
PS-371xA/ PS-365xA/ PS-345xA

The following is the way of how to adjust the screen brightness.

 Important
If you use a IPC model without OS preinstalled, you need to install the utility for the model you use. Please go to the following link to download the utility.
■ Utility for PL3000 Series
■ Utility for PL-x930 Series
■ Utility for PS-371xA Series
■ Utility for PS-365xA Series
■ Utility for PS-345xA Series

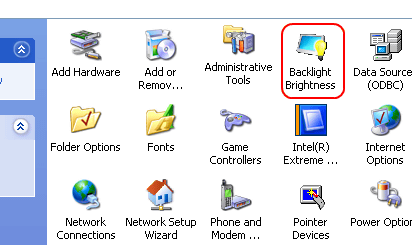

1. Go to [Start] -> [Settings] -> [Control Panel], and double-click [Backlight Brightness].

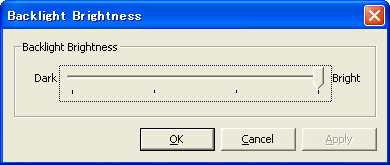

2. The [Backlight Brightness] window appears. The brightness can be adjusted in four levels with a slide bar.



 MEMO
Brightness Level 1: Very dark
Brightness Level 2: Dark
Brightness Level 3: Bright
Brightness Level 4: Very bright

The factory default is "Brightness Level 3."
