The following table shows meanings of front LED status and
indications in each IPC product.
|
|
|
| List of the
front LED status (in the PL3000 series with a monitor) |
|
 |
|
|

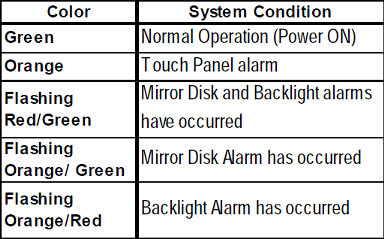

| List of the front LED status (in the
PLx930 series) |
|
 |
|
|

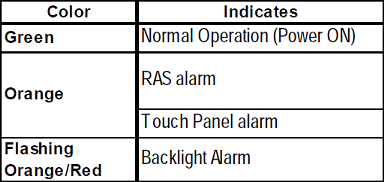

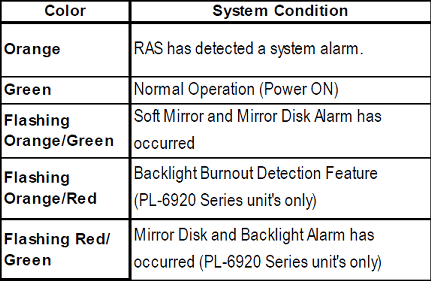

| List of the front LED status (in the
PLx920 series) |
|
 |
|
|

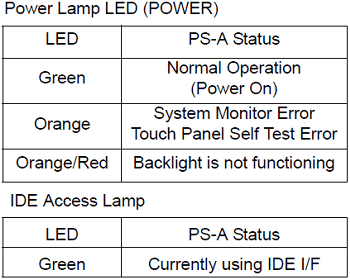

| List of the front LED status (in the
PL5910 series) |
|
 |
|
|
| List of the front LED status (in the
PL5900 series) |
|
 |
|
|

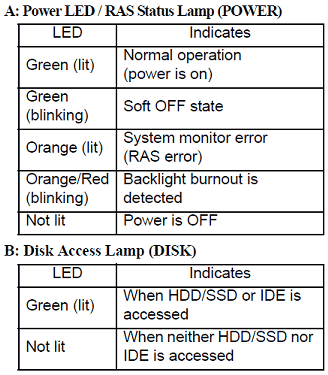

| List of the front LED status (PS-3450A /
PS-3451A / PS-3710A / PS-3711A) |
|
 |
|
|

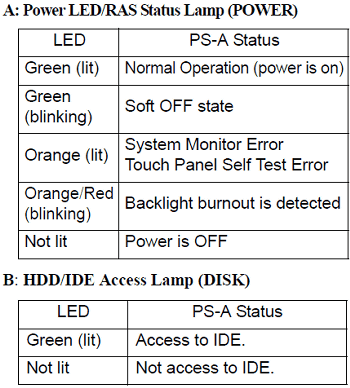

| List of the front LED status (PS-3700A /
PS-3701A) |
|
 |
|
|

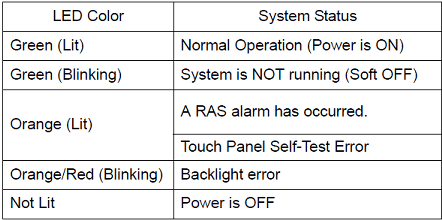

| List of the front LED status (PS-3650A /
PS-3651A) |
|
 |
|
|
| List of the front LED status (in the
FP2000 and FP3000 series) |
|
 |
|
|

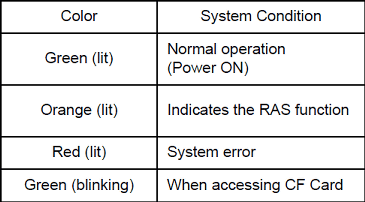

| List of the front LED status
(PS-3600G) |
|
 |
|
|
| Meanings of
the front LED status and indications (in the PL and PS
series) |
|
| LED Status |
Indication |
|
Software Off
System Stop |
The same status as after completion of Windows
shutdown process.
It is not in abnormal status even
though the system is not working. |
System Monitor Error
RAS Error
Some
kind of a RAD error occurred |
(In the case
that the setting of LED error action is ON in the
property of System Monitor)
Open System Monitor by
clicking the icon on a task bar to check where the error
occurs. |
| Touch Panel Self-Test Error |
In the case
that there is no error occurring in System Monitor,
since a user cannot cope with the error on their own,
please ask for repair of the IPC unit. |
Software Mirror Disk Error
Hardware
Mirror Disk Error |
(Only in the models supporting Mirror Disk)
An
error is detected in the configuration for
mirroring.
Please take action on the error after
confirming the configuration at the moment.
Software Mirroring Utility (PL-SM900)
User Manual
- Monitoring
via the RAS System
Monitor
Mirror Disk Unit
(PL-MD200) Installation Guide
- HDD
Installation |
| Backlight Error |
An error on
backlight is detected.
Consider a replacement of the
backlight. |
System in operation with battery
System
in standby with battery |
PS-365xA
The status shows that a battery is working, in the
case that a unit is equipped with a Battery Unit as an
option. | |
|
|

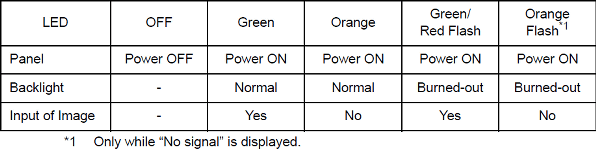

| Meanings of the front LED status and
indications (in the FP2000 and FP3000 series) |
|
| LED Status
|
Indication |
| Orange lit |
Normal operation in a FP unit, but a display signal
from a connected device is not detected. |
Green/Red blinking
Orange
blinking |
An error on
backlight is detected.
Consider a replacement of the
backlight. | |
|
|
| Meanings of the front LED status and
indications (PS-3600G) |
|
| LED Status |
Indication |
| Lit by the RAS feature |
(In the case that the setting of LED error action is
ON in the property of System Monitor)
Open System
Monitor by clicking the icon on a task bar to check
where the error occurs.
PS-3600G Series
User Manual
- RAS
Control
- Processing
Functions |
| System Error |
An error is
detected in start-up data. Consider performing recovery
of CF card.
PS-3600G Series User
Manual
- Recovery | |
|
|
