For the PL series, the PS series, and the FP series,
resizable software keyboard KeyClick is available, in addition
to the screen keyboard (manufactured by Madenta) already
installed on as a Windows accessory.
■ Startup
■
Names and functions
■ KeyClick
resize
■ Multiple simultaneous key
presses
■
Termination
|
|
| NOTE |
| - |
Software
Installation |
| |
If you use a hard disk with an
operating system installed on, the software has
been installed.
It has been installed on
Windows XP Embedded CF card (OS preinstalled) as
well.
If any operating system is not
installed, download the KeyClick installer from
the following page:
KeyClick | | |
|
|
| ■
Startup |
|
From the Windows  menu, select
[All Programs] -> [KeyClick]. |
|
|
| ■

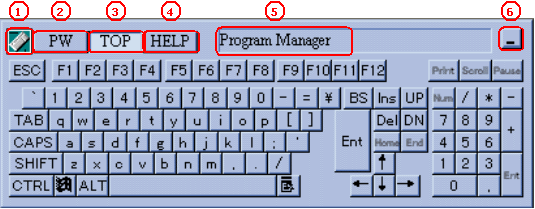

Names and functions |
|
| 1. |
Version Information
Button
Displays the program information dialog
box. The Version Information dialog box allows you to
change the size of the keyboard. |
| 2. |
Power
Button
Close the keyboard emulator
(KeyClick). |
| 3. |
Z Order
Button
When this button is on, the application
window is always front-most on the display. When this
button is off, the window displays anywhere except
front-most. |
| 4. |
Help Button
Displays the Help file. |
| 5. |
Input Destination
Application Display
Shows the name of the
destination application for the key input. |
| 6. |
Minimize
Button
Minimizes the keyboard (KeyClick).
| |
|
|
| ■ KeyClick
resize |
|
Click the Version Information button, and
then the following dialog box will appear. Change the Font
point and click [OK].
The
default value is 9. Close KeyClick once and restart it again,
and the resized KeyClick will appear. Use a keyboard connected
to the PC to enter the value; you cannot change it from the
KeyClick. |
|
|
| ■
Multiple simultaneous key presses |
|
When you need to press 2 keys or more at
the same time, for example when using the SHIFT key or ALT
key, see the following procedures: |
|
| 1. |
To enter capital D, touch the SHIFT key
on the KeyClick keyboard. Confirm the SHIFT key is
pressed. |
| 2. |
While touching the SHIFT key, drag the
key out of the KeyClick window, and the SHIFT key is
kept pressed. |
| 3. |
Then, touch the "d" key.
| |
|
|
| ■
Termination |
|
Touch the Power Button (see ■ Names and
functions) on the KeyClick to close it. |
|
|
