| IMPORTANT |
| - |
The electric power may be
supplied to the PL unit even when a screen
blacks out (such as the standby mode). To
prevent from a unit malfunction, be sure to
check that the PL unit's power is disconnected
before installing the unit.
| | |
|
|
|
| 1. |
Unscrew the two screws of the HDD
slot and remove the cover. |
|
|
| 2. |

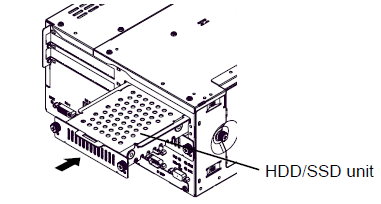

Insert the SSD Unit slowly along
the guide rail while holding the cover. Make sure
the SSD Unit is inserted all the way in the HDD
slot. |
|
|
| 3. |
Fix the SSD Unit with the screws.
The torque should be 0.2 to 0.3 N
m. |
|
