Screen Data Transfer from a SD Card fails

Please confim the followings.

Is a SD Card inserted in graphic operator interface?

Please transfer the data after a SD card is completely inserted.
A SD card may not have been inserted properly even if it is in.

* It is possible to check whether a SD card is inserted properly with SD Card Access LED.

Color	Indicator	Status
Green	ON	The SD Card is inserted.
-	OFF	The SD Card is not inserted or is not being accessed.

Is a SD Card formatted as NTFS format?

In case of NTFS format, graphic operator interface can not recognize a SD card.
Format a SD card on your PC using FAT or FAT32.

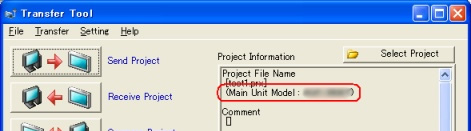

Are the Display Unit type setting of the data in a SD Card and the model to which the data will be transferred same?

Transfer will fail unless the Display Unit type is the same. Please check the Display Unit type and create the backup data again.

Is the memory loader tool saved properly in a SD card?

To transfer the screen data with a SD card, both the project backup data and the memory loader tool must be saved in a SD card. If the backup data/the memory loader tool is not created properly or the data is insufficient, the data can not be transferred.
Moreover, the data must be saved in the root folder (directory) of a SD card.

Perform [Create Backup File] from [Memory Loader] of the Transfer Tool and save all the created files and folders to the root folder (directory) of a SD card.

--> Transfer Procedure
