What’s the Enhanced Recipe function?

The Enhanced Recipe function is one of three kinds of recipe functions.

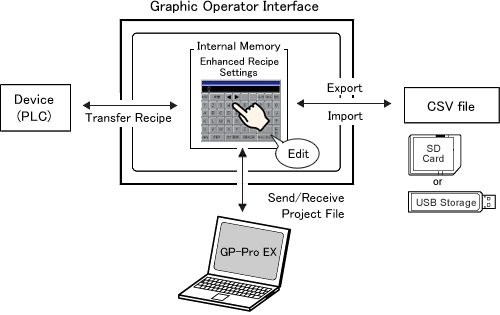

You can directly transfer the recipe data (binary type) created on GP-Pro EX from the touch operator interface to the connected device and also can read out the data of the connected device and save them in the touch operator interface.

There are differences between the Enhanced Recipe function and the other recipe functions as shown below.

Recipe Function Type	Enhanced Recipe	Filing Data Transfer	CSV Data Transfer
Creating data	GP-Pro EX Spreadsheet Software (Excel etc)	GP-Pro EX	GP-Pro EX Spreadsheet Software (Excel etc)
Data Type	- Data created on GP-Pro EX (binary type) - CSV File 1,2	Data created on GP-Pro EX (binary type)	CSV File
How to change data	- Edit on GP-Pro EX - Edit on Touch Operator Interface *3	- Edit on GP-Pro EX - Edit on Touch Operator Interface	- Edit on GP-Pro EX - Edit on Touch Operator Interface
Data Type to be handled	- Word 　16 bits/32 bits 　Dec/Hex/BCD/Float - Bit - Text	Word 16 bits/32 bits Dec/Hex/BCD/Float	Word 16 bits/32 bits Dec/Hex/Float
Mixed data type		-	-
Address Setup	Sequential/Random address	Sequential address only	Sequential address only
Using data for other projects	*4	-
Refine Search/Sort on Touch Operator Interface	*5	-	-

*1:

A SD card or a USB storage device is required.

*2:

The CSV file setting in the SD card/the USB storage device cannot be directly imported to the GP-Pro EX project file. In order to reflect the setup values in the CSV file into the project file, you need to import the CSV file to the internal memory of the touch operator interface once and then receive the project file of the touch operator interface.

*3:

Display the keypad on the touch operator interface and edit data, or import data from the SD card/the USB storage device and change data.

*4:

Possible by importing the exported CSV file to the touch operator interface’s internal memory. The Enhanced Recipe settings (the number of elements, the data type) should be the same.

*5:

Except GP-4*01TW and GP-4401WW
