| The picture of no border bit switch does not show on the screen when GP-PRO/PB3 data is converted. |
|
|
When no border bit switch (SW_NO_BORDER) that used in the GP2000/77R/70 series converts to the GP3000 series, "switch/lamp" part become the touch areas without the display.
Therefore, it is necessary to reset it as follows when you use a no border bit switch on the GP3000 series.
| 1. |
Open the "switch/lamp" setting screen, and click the "lamp feature" tab.
|
| 2. |
Check the "lamp feature" box.
|
| 3. |
The "Bit Address" is displayed on setting screen when you checked the "lamp feature" box, then, set the monitored address. |
|
|
| 4. |
Click the "Select Shape" selection", select lamp design.
|
| 5. |
Select the state 0 at [SW_SP221_OFF] of [Standard Parts] and the state 1 at [SW_SP221_ON] of [Standard Parts] in "Select State Window".
Click "OK" for setting.
State 0 shows turning off the switch, and state 1 shows turning on the switch.
|
|
|
| 6. |
Click the "color" tab.
|
| 7. |

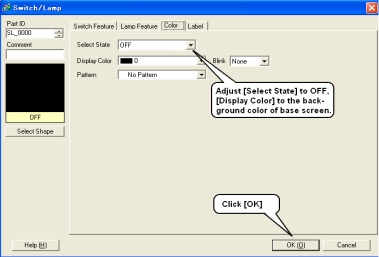

Match the "Select State" to "Off", and the "display color" to the based setting screen color. |
|
|
| 8. |
Click "OK".
The setting is completed.
|
It becomes possible to operate the no border switch as well as GP2000/77R/70 series when the "switch/lamp" setting changes as follows. |
