| What can I do to use the created variables on the screen? |
|
|
-
|
Specifying with parts |
|
|
|

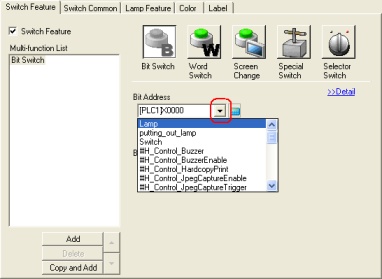

Click the icon of the bit address pull down, then the variables which can be set will be listed. |
|
|
|
| - |

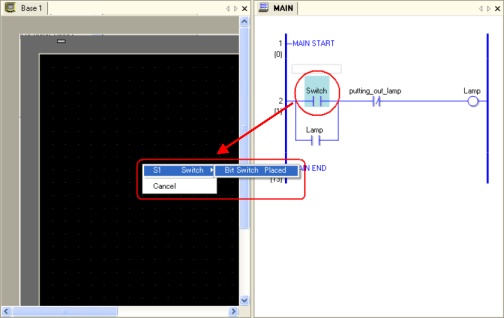

Dragging from the Logic Screen |
|
|
1.
|
With both the instruction and the variable selected from the logic screen, drag and drop them on the base screen and select the parts to place. |
|
|
| 2. |

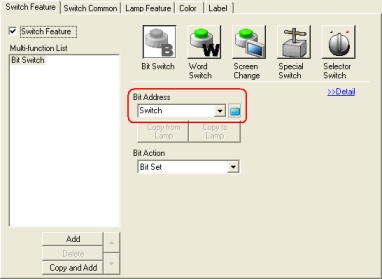

Please check the address of placed parts and confirm that the dragged variable is set. |
|
|
|
|
|
|
|
