| Is it possible to use Connection Device Address on Logic Screen? |
|
|
Yes, it is possible to use a connection device address on the logic screen. There are 2 methods to setup as below.
|
|
|
-
|
How to use Connection Device Address directly |
|
|
1.
|

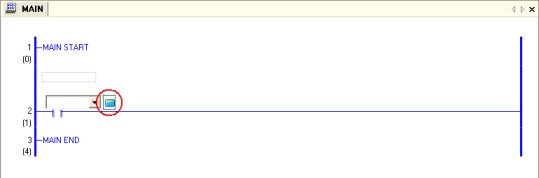

Click the icon of a numberic keypad after inputting instruction.
|
|
|
|
|
2.
|
A keypad for inputting addresses will be displayed. Input a connection device address.
|
|
|
|
| 3. |

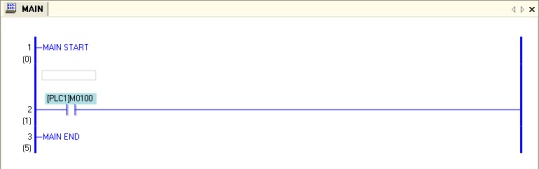

The connection device address will be set on the instruction. |
|
|
|
| MEMO |
|
・
|
Please refer to the maximum number of registration in case of using connection device addresses on the logic program. |
|
|
Bit Address
|
256
|
|
Word Address
|
256
|
|
H System Variable
|
64
|
|
Total
|
256
|
|
|
|
*
|
There are the maximum number of each items and of total. |
|
|
|
|
|
-
|
Registering Connection Device Address
|
|
|
1.
|
Select the [Common Settings] menu, and click [Symbol Variable Settins].
|
|
|
|
|
2.
|
[Edit Symbol Variable] will be displayed. Set the specified name on [Name], the bit address or the word address on [Type], and click the icon of the keypad on [Address] to input the connection device address.
|
|
|
|
|
3.
|

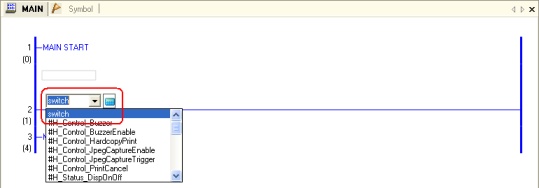

After inputting the instruction, click the pull-down icon. The symbol which you have set will be displayed.
|
|
|
|
|
4.
|

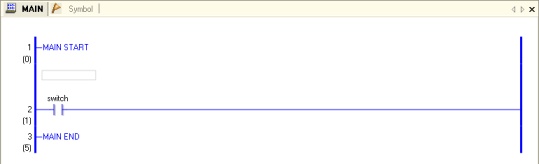

Symbol (Connection Device Address) will be set on the instruction.
|
|
|
|
|
| MEMO |
|
|
The maximum number of Symbols which can be registered is 3000.
|
|
|
|
|
|
|
|
