FAQ
I would like to display the logic screen and the base screen at the same time.
How to display the logic screen and the base screen at the same time
1.

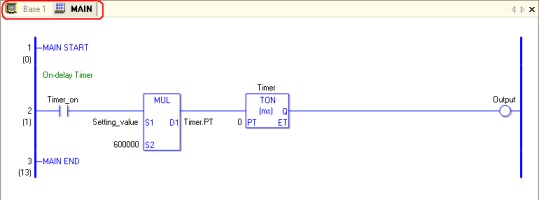

Open the logic Sscreen and the base screen.
2.

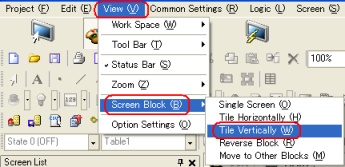

On the [View] menu, select [Screen Block] and click [Tile Vertically].
3.

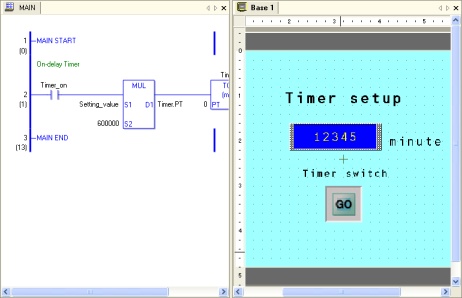

The logic screen and the base screen will be displayed on the right and on the left separately.
MEMO
1.

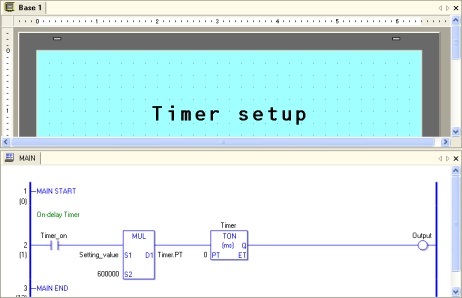

When you click [Tile Horizontally], the screens will be displayed on the top and at the bottom separately.
2.

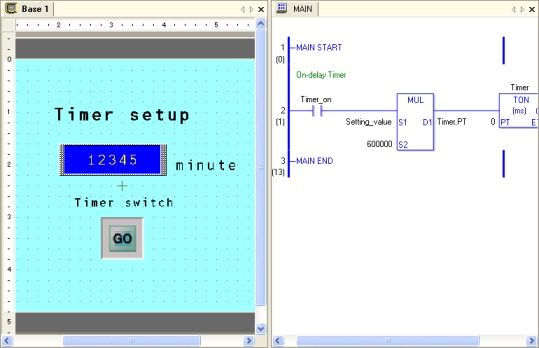

When you click [Reverse Block], the position of the displayed screens will be reversed.
