| RGE*007_Units config overlapped. |
|
Error Description
|
Error message says [RGE*007_Units config overlapped.] on the screen of GP 3000 Series. |
Cause
|
S-No of Flex Network Unit is duplicated and set.
|
Solution
|
Please perform Error Check, and confirm I/O Driver Settings. Please send the Project File again after checking. |
|
|
How to perform Error Check |
|
| 1. |

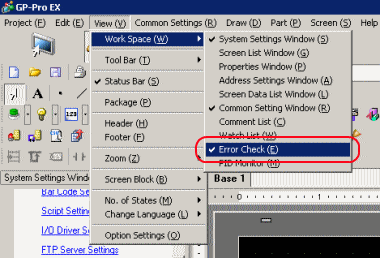

Please confirm whether [Error Check] from [Work Space] on [View] is checked, and if not, please check on.
|
|
|
| 2. |

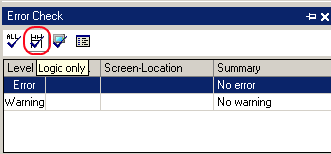

Please click [Logic Only] on [Error Check] window to perform error check of Logic.
|
|
|
|
|
How to confirm I/O Driver Settings |
|
| 1. |

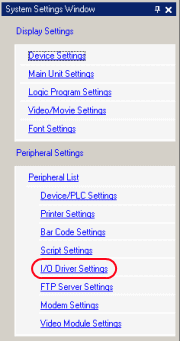

Please click [I/O Driver Settings] from [Peripheral Settings] pm [System Settings Window]. |
|
|
| 2. |

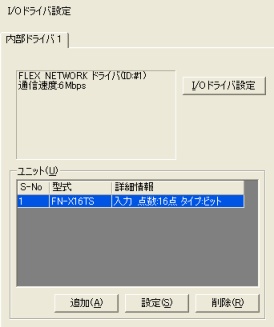

Please confirm that the S-No in [Unit] on [I/O Driver Settings] is not duplicated. if it is, please change the setting not to duplicate. |
|
|
|
| MEMO |
| ・ |
16 Points occupy 1 station of S-No.
For instance, the unit of Input 16 Points/Output 16 Points (IO Points: 32Points) is connected, 2 stations of S-No will be occupied ( In case that S-No is set on 1, [1] and [2] will be occupied).
|
|
|
|
|
|
|
|
