1)
|
Please match the settings of each unit and I/O Driver Settings. |
|
Please follow the steps to confirm the settings.
|
1.
|
Please confirm the unit model in use.
|
|
2.
|
Please confirm the communication settings and the settings of S-No. on the main unit.
|
|
Please refer to User Manuals of each unit for more details of the communication settings and the settings of S-No. on the main unit.
|
| 3. |

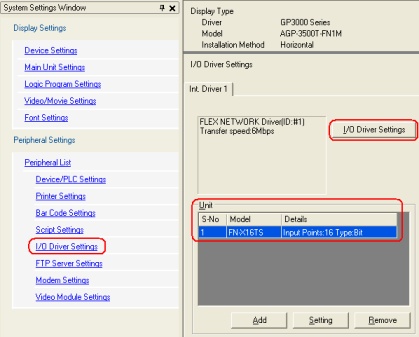

Please confirm that the communication settings and the type and S-No. of the main unit which is connected are set properly on [I/O Driver Settings].
|
|
|
・
|
Please select [I/O Driver Settings] on [System Settings Window] to set Transmission Speed.
|
|
|
|
| 4. |
Please confirm that S-No. is not duplicated.
Number of the occupied stations are depending on each Flex Network Unit. For instance, in case of setting [1] for S-No of the unit which occupied 4 stations, S-No. from 1 to 4 will be occupied.
Therefore, S-No. of the next unit will be set with the number after [5]. Otherwise S-No will be duplicated and an error lamp will be turned on.
|
|
|
・
|
Numbers of stations of each unit are listed below. |
|
|
Type
|
Model
|
No. of Occupied Stations
|
|
I/O Unit
|
FN-X16TS41
|
1
|
|
FN-X32TS41
|
2
|
|
FN-Y16SK41
|
1
|
|
FN-Y16SC41
|
1
|
|
FN-XY08TS41
|
1
|
|
FN-XY16SK41
|
1
|
|
FN-XY16SC41
|
1
|
|
FN-XY32SKS41
|
4
|
|
FN-Y08RL41
|
1
|
|
Analog Unit
|
FN-AD02AH41
|
1
|
|
FN-DA02AH41
|
1
|
|
FN-AD04AH11
|
4
|
|
FN-DA04AH11
|
4
|
|
Single-Axis Positioning Unit
|
FN-PC10SK41
|
4
|
|
FN-PC10LD41
|
-
|
|
High-Speed Counter Unit
|
FN-HC10SK41
|
8
|
|
|
|
|
2)
|
Please run Logic Program. |
|
・ |
Running Logic Program with GP-Pro EX (Editor) -> See A) |
・ |
Running Logic Program with the GP main unit -> See B) |
| A) |
With GP-Pro EX (Editor) |
|
|
・
|

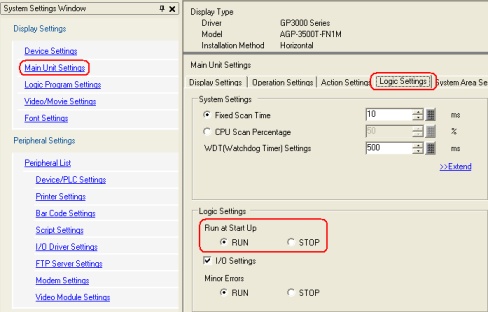

Please follow as [System Settings Window] - [Main Unit Settings] - [Logic Settings] tab to select [Run] on [Run at Start Up]. |
|
 |
|
| B) |
With the GP main unit |
|
|
・
|

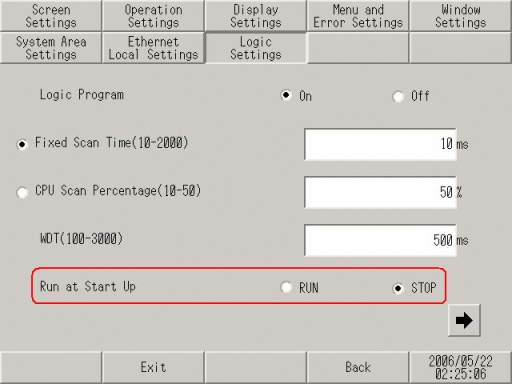

Please go to Offline Mode, and open [Main Unit Settings] - [Logic Settings] to select [Run] on [Run at Start up]. |
|
|
|
|
|
|
|
3)
|
Please set the wire properly. |
|
|
1.
|
Is Flex Network Cable wired properly? |
|
|
Please refer to User Manuals of each unit for more details of how to set the wire. |
| 2. |
Please use the cables which Digital Electronics Corporation recommends for Flex Network Cables. |
|
|
・
|
FN-CABLE2010-31-MS(10m) |
|
|
・
|
FN-CABLE2050-31-MS(50m) |
|
|
・
|
FN-CABLE2200-31-MS(200m) |
|
|
|
| 4) |
Please set [I/O Settings] ON. |
|
・ |
Setting [I/O Settings] ON with GP-Pro EX (Editor) -> See A) |
・ |
Setting [I/O Settings] ON with the GP main unit -> See B) |
| A) |
With GP-Pro EX (Editor) |
|
|
・
|

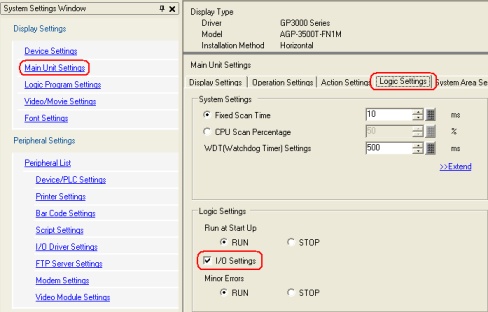

Please follow as [System Settings Window] - [Main Unit Settings] - [Logic Settings] tab to check on [I/O Settings]. |
|
 |
|
| B) |
With the GP main unit |
|
| ・ |

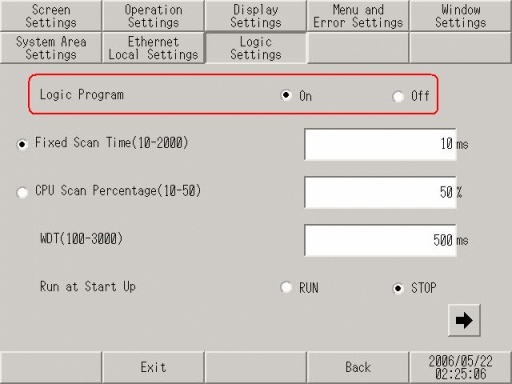

Please go to Offline Mode, and open [Main Unit Settings] - [Logic Settings] to set [On] on [Logic Program]. |
|
|
|
|
|
|
