What is Upload Information? |
[Upload Information] is the data which is required to receive the data from GP. In advance, it is necessary to send Upload Information to GP with the screen data when transferring the screen to GP.
* The data from GP can not be received if Upload Information has not been transferred.
* Upload Information can not be transferred alone to GP.
The settings to send Upload Information can be set as follow, [Screen Transfer] -> [Transfer] -> [Setup] -> [Transfer Settings].
|
|
|
|
![](images/check.gif) |
Please confirm that Upload Information has been transferred. |
|
|
|
|
Switch the GP screen to Offline Mode, and please confirm that you can see * on the main menu.
|
|
|
|
|
|
** :
2 Asterisks |
[All Series]
The screen has been created with GP-PRO/PB3 for Windows and Upload Information has been transferred. |
* :
1 Asterisk |
[70 Series only]
The screen has been created with GP-PRO/PB3 for DOS (System Version 1.20 or higher) and Upload Information has been transferred. The data may be received with the screen creation software for DOS. |
No Asterisks |
[All Series]
Upload Information might not have been transferred.
[70 Series only]
In case that the screen has been created with a screen creation softwares for DOS such as PB-PRO3, the data may be recieved with the screen creation software for DOS. |
|
|
|
|
|
|
![](images/check2.gif) |
Please confirm that you have not transferred the data with the screen creation software for DOS (in case of 70 Series).
|
|
|
|
|
For instance, in case to upload, with GP-PRO/PB3 for Windows, the screen data which was created with GP-PRO3 (the screen creation software for DOS), the window which says [No Upload Information in GP Data file] will be displayed and the data can not be received. To receive the data, it is necessary to prepare the screen creation software which you have used to transfer.

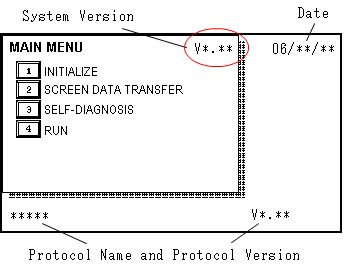

Therefore, please confirm the system version on the main menu of Offline Mode and prepare the screen creation software referring to the list below. |
|
|
|
|
|
- System Version |
|
System Version |
Software to create Screens |
270 |
370 |
470 |
570 |
870VM |
V1.20or higher |
GP-PRO/PB3 for Windows |
V1.0 or higher |
V1.12 |
― |
V1.12 |
V1.12 |
― |
GP-PRO/PB3 for DOS |
V1.00~V1.00c |
V1.18a |
V1.10~V1.11c |
|
― |
|
|
― |
GP-PRO3 |
V1.00 |
V1.12 |
V1.12 |
V1.12 |
V1.12 |
V1.12 |
V1.02 |
|
|
|
* Other GP70 Series (H70, 675, 571, etc.) excepting the above support GP-PRO/PB3 for Windows or higher.
|
|
|
|
|
![](images/check3.gif) |
Please confirm that you haven't transferred after conversion with 232C-USB. |
|
|
|
|
In case of using a 232C transfer cable (GPW-CB02 or GP430-CU02-M) which has been converted by a 232C-USB convertor on the market, [No Upload Information in GP Data file] may be displayed |
|
|
|
In this case please do not use the 232C-USB convertor, but a 232C transfer cable GPW-CB03 (It supports GP-PRO/PB3 C-Package02 SP2 or higher. It is necessary to install the driver). |
|
|
|
|
