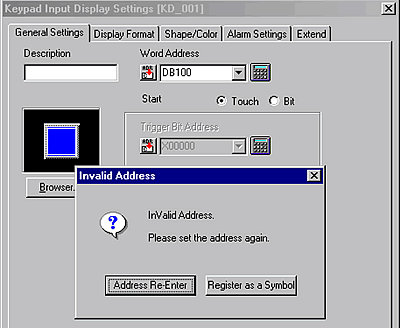

If the address which does not excist in PLC is used or 2 bite letters(Japanes,Chinese,korean etc) are used when entering an address, you will be asked [Invarid address]. |
|
If the address is kept symbolized, it will causes an error of [Address Range Over] once the screen is transfered to GP.
Please click [Address Re-Enter] to enter a proper address in case that you do not use the symbol function.
.
|
What is [Symbol] registration? |
|
This is the function which you can assign the address your liking name to find the address which you use with GP-PRO/PB III C-Package easily.
Instead that the address is set to a tag or a part, it can be set the screen as [Symbol Name].
The registered symbol can be entered or checked with [Symbol Editor].
|
How to display Symbol Editor |
|
1. |
Please select [Symbol Editor] from [Screen/Setup] on [Project Manager]. |
|
![](images/image symboll2.gif) |
2. |
After Symbol Editor is displayed, please click [Bit Symbol] or [Word Symbol] and enter Symbol Name or Word Address |
|
![](images/symbol3.gif) |
|
