Quick start for new customers

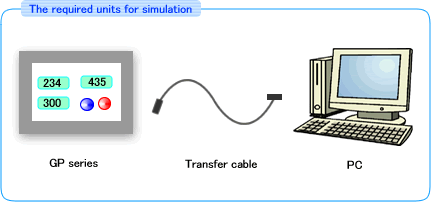

		GP-PRO/PB3 supports the simulation feature. When you use the simulation feature,please prepare GP, a transfer cable, PC installed GP-PRO/PB3. Before starting the simulation feature, please transfer the project file set the simulation.


How to simulate
	1.	Select [Setup]->[Transfer Settings] at [Transfer] window.

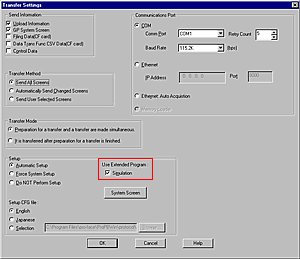

	2.	Turn ON [Simulation] check box in [Transfer settings] dialog box.


	3.	Click [OK] and transfer the project file to GP.

	4.	After transfer, select [Simulation] icon at [Project Manager].


	5.	The simulation screen will show, click [Start] icon.

		When you use the simulation feature, please make sure precautions of simulation. You can check it at[chapter8:Simulation]- [GP-PRO/PB3 C-Package operation manual].
