 Quick start for new customers

1. Click the icon on your desktop or start button of Windows to start GP-PRO/PB3 C-Package.
    When you start GP-PRO/PB3 C-Package from an icon on desktop

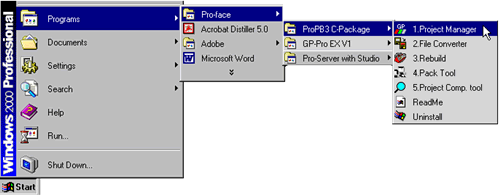

    When you start GP-PRO/PB3 C-Package from the start icon of Windows



2.



Create a new Project File after GP-PRO/PB3 C-Package starts.

The file which is made with GP-PRO/PB3 C-Package is called [Project File] and send the file to GP unit after you finish screen creation of switches, lamps, and alarms.




3.

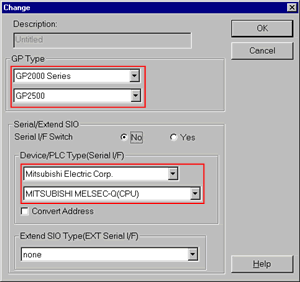

Please select the proper type from [GP Type] and [Connection Device] once [New] dialog box is displayed.


    If the setting of [Connection Device] of PLC or Controller is wrong, communication error will be displayed when running. Please check the type of [Connection Device] before you start.
Please click and find the proper type with Device/PLC connection manual.


4. Once you click [OK], click [OK] again when a window as below displays.


5. [Drawing Board] will be open, then click the [New] icon in the left above.



6.



Click [Base Screen]. [Base Screen] is the basic screen which arranges parts such as
switches and lamps. Other than [Base Screen], there are [Mark Screen] and [Trend Graph Screen], and they are the screens which arrange the special functions. Please chose [Base Screen] here.

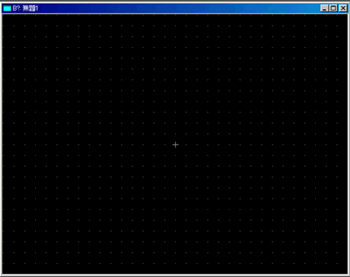

7.

[Base Screen] has made. Please arrange the parts and tags.



8.


The actual way of screen creation is written specify in [Otasuke GP Seminar Textbook]. Please refer it.
