Is K Tag or Keypad Input Display in the condition to receive input? |
|
|
|
|
In case of using K Tag, please check whether [Trigger Bit Address] is ON or not. |
|
|
|
In case of using Keypad Input Display, Input Actions, [Touch] or [Bit], can be selected. |
|

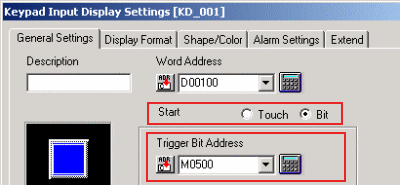

![](images/keypad%20start%20bit.gif) |
|
|
|
Selecting Touch |
Please touch the top of Keypad Input Display to enable to receive input. |
Selecting Bit |
It is not possible to input unless [Trigger Bit Address] is ON. |
|
|
|
|
|
![](images/check2.gif) |
Please set Bit Address ON/OFF by force by PLC. |
|
|
|
|
・Being connected to PLC or Temperature Controller |
|
Please STOP the program of PLC and change Bit Address of PLC with Ladder Software, or so on by force. Please confirm the Display of GP at that time. |
|
|
|
・Being connected to Board Computer with Memory Link Type. |
|
Please STOP the program of HOST and change only Bit Address by force. Please confirm the Display of GP at that time. |
|
|
|
|
![](images/check3.gif) |
Are you using U Tag/Window Parts? |
|
|
|
|
Please check whether you have called K Tag/Keypad on Window or not.
if you call them on Window, they may not operate correctly . |
|
|
|
|
![](images/check4.gif) |
Does the Keypad beep when clicking [ENT] Key? |
|
|
|
|
In case of beeping when you click [ENT] Key, [Alarm Settings] of K Tag or Keypad Input Display is set.
If [Alarm Settings] is set, when you input the data out of the Alarm Range, the Keypad will beep and Input will be canceled.
|
|

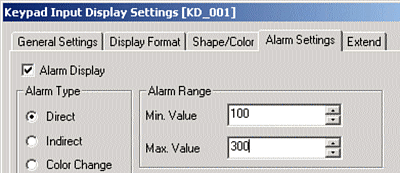

![](images/keypad range.gif) |
|
|
![](images/check5.gif) |
Please try Rebuild or Force System Setup. |
|
|
|
|
|
|
|
|
Other Checking Points |
In case that [Data Type] is [Relative] |
Please check Input Range and Display Range are correct in case that [Data Type] of K Tag/Keypad is set as [Relative]. |
In case of that [Color Settings] is [Indirect] |
Please check the data of Display Color is correct in case that [Color Settings] of K Tag/Keypad is set as [Indirect]. |
Checking Number of Tags |
The Number of Tags (including Parts) which are available on one screen (including Current Window Screen) is up to 128 for GP270/GP370/GPH70, up to 256 for GP70 Series, and up to 384 for GP77/ GP77R/GP2000 Series.
Depending on the Tags, Maximum Number which can be set is not 384(254/128) for some Tags.
Please refer Tag Reference Manual. |
Simulation Mode
(GP70/77 Series only) |
Please check whether Simulation Mode is displayed or not.
If you can see SIM-LINK at the bottom left of the screen on Offline Mode, Simulation Mode is running. When you transfer, please check off [Send Simulation Data] of [Transfer Settings] . |
|
|
|
|
