Is it possible to stop a Controller when the error has occurred in I/O?

It is possible by using the system variables, #IO Fault and #Command.

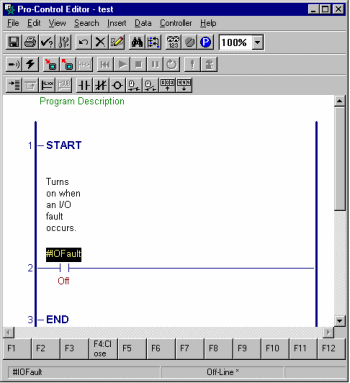

1.	Place a Normally Open Contact and allocate the system variable #IO Fault. This variable turns ON when I/O error has occurred in I/O driver.

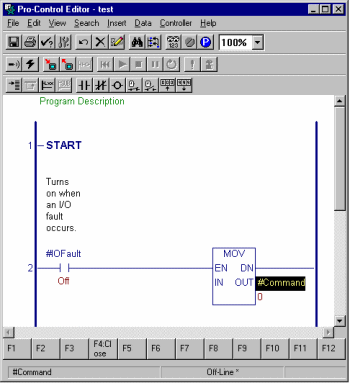

2.	Place MOV after the Normally Open Contact that #IO Fault is allocated to, and allocate the system variable #Command on the OUT side.

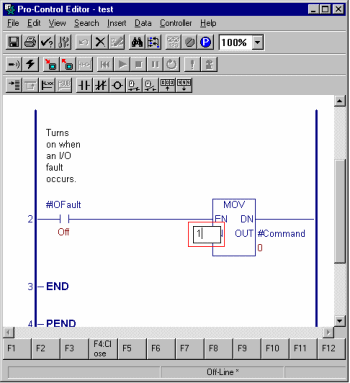

Controller stops when the 0th bit of #Command has been turned ON. Write 1 in #Command to turn ON the 0th bit (that is a Controller stop bit), and stop the Controller.

By combining those, MOV instruction is processed when I/O error has occurred, and write 1 in #Command and turn ON the 0^th bit to stop the Controller.
