What is the address shown as % in the Pro-Control Editor?

This is the address managed inside the software. No need to care about it specially, but refer it as a specific place of I/O setting.

-	GP-PRO/PB3 C-Package03

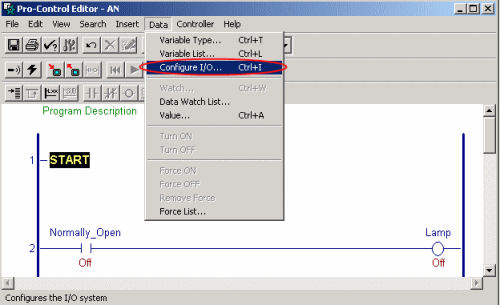

	1.	In the Pro-Control Editor, click on [Data] in the menu bar -> [Configure I/O]. Then, [Configure I/O] window appears.

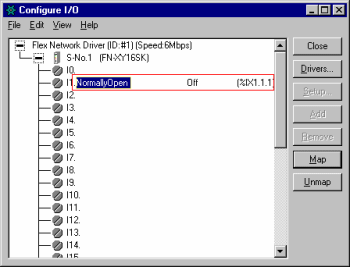

	2.	The notation written in the right side of the variable as (%IX1.0.0) is the I/O address.


-	LT Editor
	1.	In the Logic Program Editor, click on [Data] in the menu bar -> [Configure I/O]. Then, [Configure I/O] window appears.

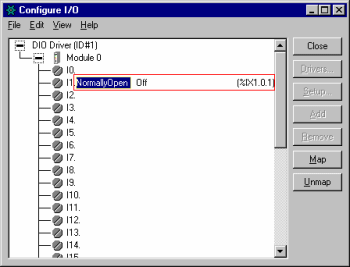

	2.	The notation written in the right side of the variable as (%IX1.0.1) is the I/O address.
