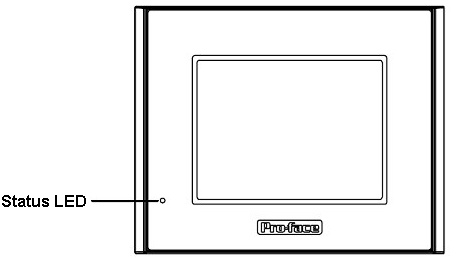

The status LED is blinking. |
![](/images/shim.gif) |
![](/images/shim.gif)
|
|
![](images/lt_error01_01e.jpg)
|
|
The states differs depending on the colors of the blinking status LED. Please see the below for the details.
|
|
Color |
Indication |
Operation
Mode
(Draw) |
Logic Action
Mode
(When Logic Available) |
Green |
Illuminating |
Offline |
--- |
Run |
Run |
Blinking |
Run |
Stop |
Red |
Illuminating |
Powering Up |
Blinking |
Run |
Major Abnormal |
Orange |
Illuminating |
Back Light Burnt Out |
Blinking |
Starting Up Software |
|
|
The LED lamp shows the abnormal states such as the power status of the main unit, the action status of the firmware, lamp burnout, and also the action status of logic programs. |
|
|
