Display right-click menu
Specifies whether to display the menu by right-click on the window in WinGP.

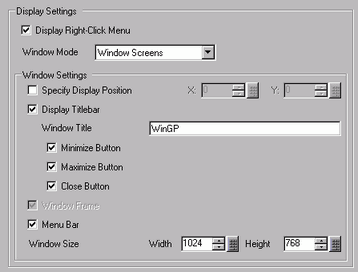

38.10.2.2 Window Frame - Right-click menu
Window Mode
Select the size of the window screen, either [Full Screen] or [Window], when starting [WinGP]. When [Window] is selected, the window opens to the defined window size. When [Full Screen] is selected, the window is displayed at full screen regardless of the screen size.
Window Settings
Specify Display Position
Defines the window display position when WinGP starts. Use X and Y coordinates to set the display position.
X coordinate
0 to maximum horizontal resolution of the selected model minus 1
Y coordinate
0 to maximum vertical resolution of the selected model minus 1
Display Titlebar
Specifies whether to display the title bar in the window frame.
38.10.2 Window Frame Settings Guide
Window Title
Specifies the window title name to display on the title bar in no more than 63 single-byte characters.
Minimize Button
Specifies whether to display the Minimize widow button.
Maximize Button
Specifies whether to display the Maximize window button.
Close
Specifies whether to display the Close window button. Window Settings
Window Frame
Specifies whether to display the window border.
If [Display Titlebar] is selected, [Window Frame] is always displayed and the check box is selected.
Menu Bar
Specifies whether to display the menu bar inside the window frame.
Window Size
Specifies the window size with [Width] and [Height].
