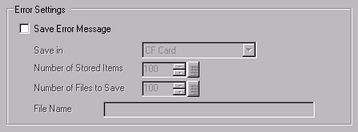

Save Error Message
Specifies whether to save system errors and application errors displayed on the [WinGP] window.
If no more than 10 minutes have past since the last save, the error log file is not saved until 10 minutes pass to avoid frequent write access. If so, all summaries recorded in the 10 minutes are saved in the error log file.
Even the error occurred consecutively, all errors are saved in the error log.
If the clock time of the display unit is changed while the error log function is operating, the error log will not be saved in the order of elapsed time.
Save in
Select the destination external storage to save the error log file.
In the defined [Destination Folder], a "LOG" folder is created, and error log files are saved in the folder.
Number of Stored Items
Specifies the number of error messages to save per error log file using 1 to 1000.
Number of Files Saved
Specifies the number of error files to save the error log files using 0 to 1024.
If [Number of Files to Save] is set to 0, the files are saved until the external storage capacity for saving is reached.
Until the number of error log files reach the number set in the [Number of Stored Items], records are added to the latest error log file.
However, if you change the date or time, an error log file may be created with the wrong date or time. In this case, with the new date, records are not added even if the system has not reached the [Number of Stored Items].
When the number of error messages exceeds [Number of Files to Save] in [Error Settings], the oldest file is deleted to add a new file.
File Name
Specifies the file name prefix of the error log file using 0 to 16 single-byte characters.
The file name is specified in the following format.
[Prefix][Date/Time]_[ID].[Extension]
Example:
[Prefix]: Test
[Saved Date/Time]: July 14, 2006 16:18
[ID]: Same 0 (0 - Serial Number)
When multiple files are created at the same time, this number specifies the order of files created.
[Extension]: log (Fixed characters)
→File Name: Test200607141618_0.log
If no file name is specified, the file is named simply as [Save Date Time] and [ID].
