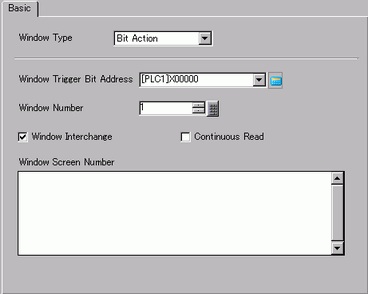

Window Trigger Bit Address
Specify the bit address to control the window display.
This can be set to either a connecting device (e.g. PLC) address or a display unit's internal device address (System Data Area).
When many parts are running from a window, you can sometimes speed up screen display by using a display unit's internal device addresses.
Window Number
Specify the number of the Window Screen you want to display from 1 to 2000.
Window Interchange
Select this check box to allow the selected window to move on top of another window.
Continuous Read
Select to continually read data from a part regardless of the Window displayed. This does not apply to touch input parts.
When a window displays, the part's Data Display speed is increased.
When the Window is not displayed, part data specified on the window and screen is read. All the other screen display speeds decrease.
For Window parts set up with [Continuous Read], you can draw the following maximum number of windows on a single screen. Plus, when you draw the maximum number of window parts set up with [Continuous Read], you cannot display other windows.
Up to 4 (up to 3 when using the Global Window)
SP5000 Series
GP4000 Series (excluding the GP-410*)
LT4000 Series
IPC Series
Up to 3 (up to 2 when using the Global Window)
Other models
Windows with the [Continuous Read] option set are read before Windows without this option are read.
Any scripts set on a Window execute if the script condition is satisfied, even if the Window is not displayed. If you do want to execute the script, confirm the [Continuous Read] check box is cleared.
Window Screen Number
Display a list of the Windows. The [Window Number] will be automatically input by selecting the screen.
