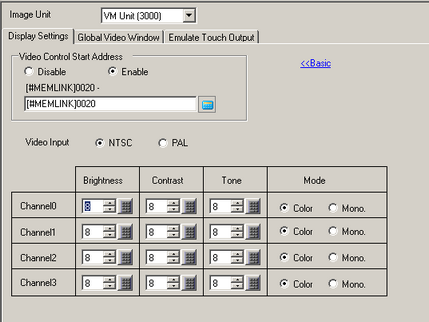

28.10.7.2 Image Unit - Display Settings/Details

Channels 0 - 3

Set the screen display state by the channel set in [Image Unit Window Settings].

Brightness

Set the brightness. The setting range is from 0 to 15.

Contrast

Set the contrast. The setting range is from 0 to 15.

Tone

Set the tone. The setting range is from 0 to 15.

Mode

Video input mode from either [Color] or [Mono].
