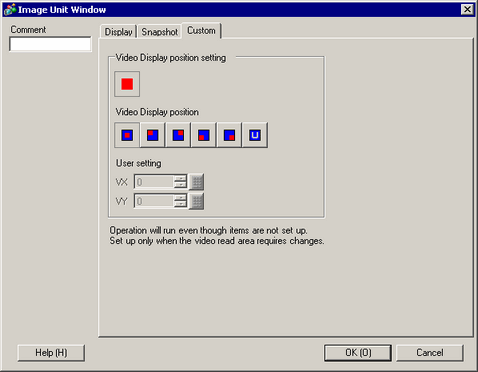

28.10.5.3 Image Unit Window - Custom Settings

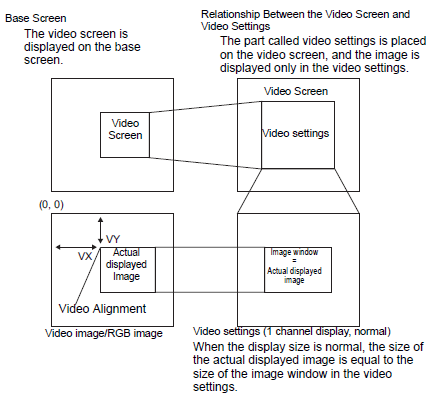

Video Display position setting

Specify which part of the actual image should be displayed.

Creates a movie window for the movie size starting from (0, 0).

Specifies the necessary position and creates a video window.

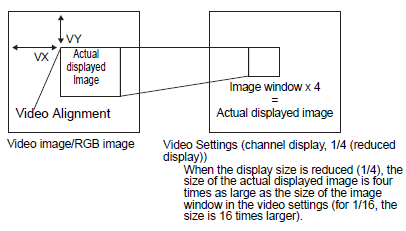

Video Display position

For each display screen, select the video display position from , , , , , and .

Select the icon to specify the X/Y coordinates.
