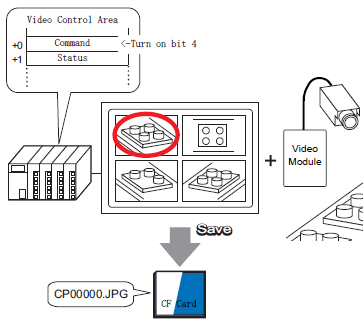

By attaching an optional VM unit to capture an image from channel 1, you can save the still image in JPEG format to external storage or a FTP server.
Supported display units and the VM units you can use are as follows.
Display Unit |
VM Unit |
GP-4521T, GP-4621T |
GP3000 Series VM Unit |
AGP-3750T |
GP3000 Series VM Unit*1 |
AGP-3500T, AGP-3510T, AGP-3550T, AGP-3560T, AGP-3600T, AGP-3650T |
GP3000 Series VM Unit*1 or GP2000 Series VM Unit |
*1 On your VM unit's product label, check the revision number.
When a star (*) marks the "1" digit position, use GP-Pro EX Ver.4.07.300 or later.
For video module specifications and installation methods, refer to the VM unit's hardware manual.
