5.5.1 Common Settings - Global Trigger Settings

Edit

Opens the New or Edit dialog box for the global trigger.

5.5.1.1 [Common Settings] - [Global Trigger] dialog box

Copy

Copies the settings for the selected global trigger.

Paste

Pastes the copied global trigger to the selected row.

If the row already has a global trigger with defined settings, then it is overwritten.

Delete

Deletes the selected global trigger.

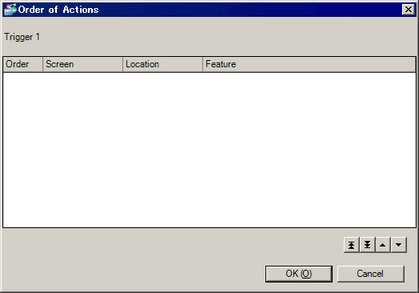

Order of Actions

Displays in a list functions applied to the global trigger.

When the trigger condition is satisfied, the functions are run from the top item in the list. Once a function is complete, the next function is run.

You can change the processing order by changing the order of functions in the [Order of Actions] dialog box.

To Top / Move up

Moves the function selected in the list either to the top or up one row.

To Bottom / Move down

Moves the function selected in the list either to the bottom or down one row.
