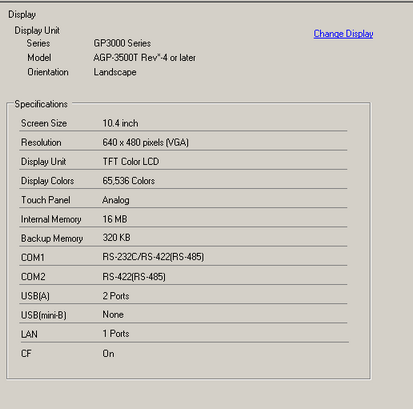

5.4.1 System Settings [Display] Settings Guide

Displays the specified display unit specifications.

Display Unit

Displays the display unit model number.

Series

Displays the series name of a display unit.

Model

Displays the model name that supports the display unit series.

Orientation

Displays the display unit installation method with [Landscape] or [Portrait].

Mode

Displays the maximum drawing capacity of the display unit.

Displays when [Model] is set to [AGP-3650T] or [AGP-3750T].

For information on the maximum drawing capacity, refer to the following.

3.9.1.1 New - Display Unit and Model Settings

Specifications

Displays the specifications of the display unit specified in [Display Unit].

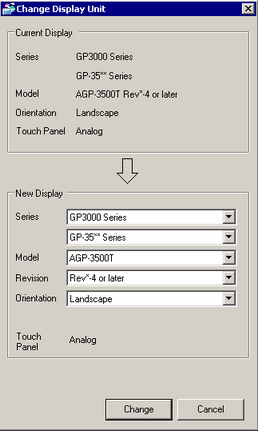

Change Display Unit

The following dialog box appears. Change the display unit model to be used for the project file.



Current Display

Displays the series name, model name and installation method of the currently specified display unit.

New Display

Specifies the [Series], [Model], [Orientation], [Revision], and [Mode] of the display unit that you're changing. When you select [IPC Series (PC/AT)], which does not support portrait orientation, select [Screen Size] instead of [Orientation].

  • Displays the [Revision] field when you select a model that requires revision information.

  • [Mode] displays when [Model] is set to [AGP-3650T] or [AGP-3750T].

Convert Resolution

When the resolution differs before and after conversion, specify whether to adjust the resolution automatically. If you convert the resolution, the part size, position, and the text size are adjusted automatically according to the display resolution. Some scale magnification may not convert properly due to text size and resolution limitations.
