Please refer to the Settings Guide for details.
10.15 Switch/Lamp Parts Settings Guide -
For details on how to draw parts, and defining the address, shape, color, and labels, please see the parts editing topic.
8.7.1 Editing Parts
Please refer to the Settings Guide for details.
10.15 Switch/Lamp Parts Settings Guide
For details on how to draw parts, and defining the address, shape, color, and labels, please see the parts editing topic.
8.7.1 Editing Parts
Create a Switch to turn ON a Bit Address (M100) only when the designated Bit Address (M105) is OFF.
On the [Parts (P)] menu, point to [Switch Lamp], and select [Bit Switch (B)], or click
to place a switch on the screen.
Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
Set up the [Bit Address] that you want to operate when you touch the switch.
From [Bit Action] choose [Bit Set].

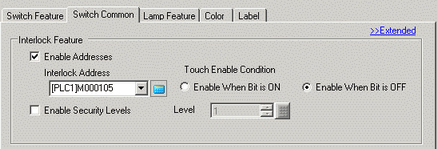

Open the [Switch Common] tab and select the [Enable Addresses] check box.
In [Interlock Address], set the bit address (M105) to enable/disable touch, and for the [Touch Enable Condition] select [Enable when Bit is OFF].
As needed, set the color and display text on the [Color] and [Label] tabs, and click [OK].
Depending on the shape, you may not be able to change the color.
When you select a switch and press the [F2] key, you can directly edit the text on the label. When [Text Table] is selected, you can change the current Text Table.

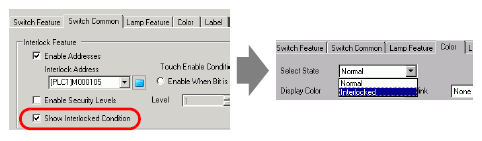

If you want the color and label to change when it is Interlocked, select the [Show Interlocked Condition] check box in the [Switch Common] tab's [Extended] view. Then, in the [color] and [Label] tabs, from the [Select State] field you can select [Interlocked] and define the interlocked state's colors and label.
