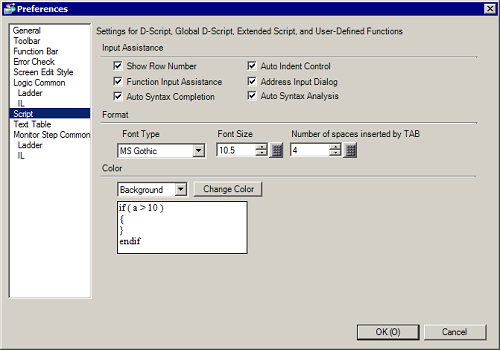

22.9.1 D-Script/Common [Global D-Script] Settings GuideConfigure settings relevant to D-Script, Global D-Script, Extended Script, and User Defined Function.
You can also specify these in the [Extended Script] and [Global D-Script] dialog boxes.22.9.1 D-Script/Common [Global D-Script] Settings Guide
Input Assistance
Configure settings of input assistance in D-Script, Global D-Script, Extended Script, and User Defined Function.
Show Row Number
Shows the row number to the right of the program.

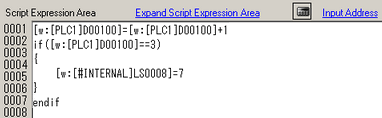

Auto Indent Control
If you insert line feeds as below, tabs are inserted corresponding to the hierarchy.

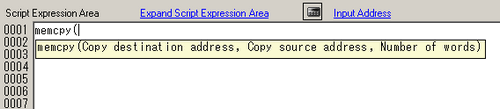

Function Input Assistance
When the function and the initial bracket "(" are typed as below, the function's format is displayed.
Address Input Dialog
When creating a script, type a left-hand square bracket ([) and the [Input Address] dialog box appears. You can input addresses in this dialog box.
Auto Syntax Completion
When "if" or "loop" is typed from the keypad, the remaining syntax is completed.
Auto Syntax Analysis
When creating scripts, the expression is verified. The [Message Area] displays the results if the expression is incorrect.
For example, "Line 1: The expression is incorrect."
Format
Set the format for scripts.
Font Type
Select the font to use.
Font Size
Set the font size to use from 8 to 72 in increments of 0.5.
Number of spaces inserted by TAB
Set the number of tab key indentations to use from 1 to 8.
Color
Set the background and text color for the input of script expressions and conditional expressions.
