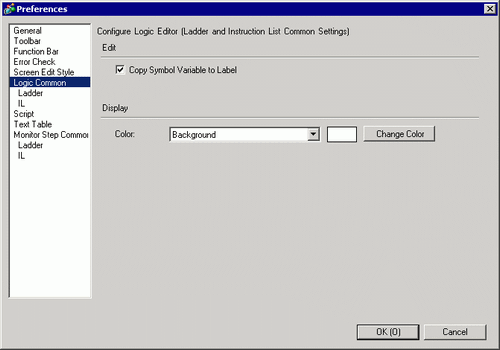

Configure Logic Editor (Ladder and Instruction List Common Settings).
Edit
Copy Symbol Variable to Label
Drag the symbol variable from the instruction to the screen editor, and drop it onto parts that enable you to set labels (such as Lamps or Switches) to register the symbol variable name to the label.
Display
Color
Select an item to change its color: [Background], [Rung Comment], [Operand], [I/O Address (ladder)], [Instructions, Power Bar, Rungs (ladder)], [Ruled Line (IL)], [SOR (IL)], [Instruction (IL)], [Branch Instruction (IL)], [Label (IL)], [Unconfigured Display Characters (IL)]. Click [Change Color] and set the color in the displayed dialog box.
Ladder

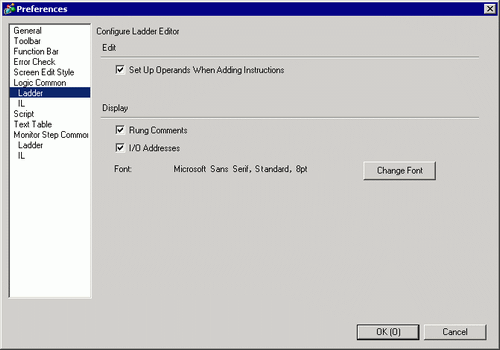

Configures Ladder Editor.
Edit
Set Up Operands When Adding Instructions
When inserting ladder instructions during the creation of a Logic Program, set the operand simultaneously.
Display
Rung Comments
Displays rung comments on the ladder screen.
I/O Address
Displays the I/O address if a symbol variable is allocated to an I/O terminal.
Font
Set a font used on the ladder screen.

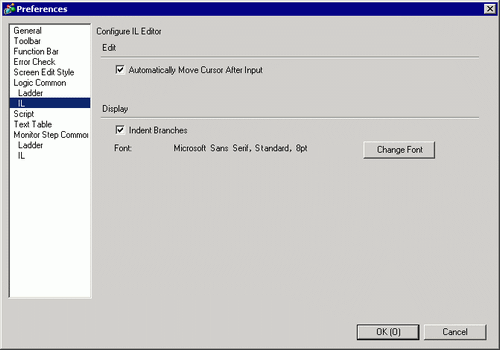

Configures IL Editor.
Edit
Automatically Move Cursor After Input
Automatically move focus to assist input during editing.
Display
Indent Branches
Indent branch instructions and display.
Font
Set a font used on the IL Screen.
