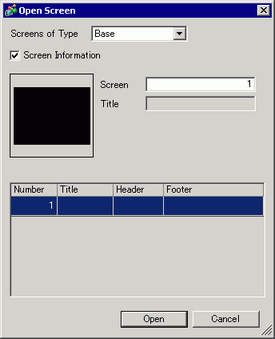

3.9.6.2 Screen - Open Screen

Opens a screen.

Screens of Type

Select the type of screen to open from [Base], [Window], [Keypad], [Image Unit Window], [Logic], or [I/O].

Screen Information

Set whether or not to display the information and preview of a screen to open.

Screen

Displays the screen number selected on the display list. If you change the number, the preview is changed.

Title

Displays the screen title in the preview.

Display List

Displays a list of all the screens in a project file.

Number

Displays the screen number.

Title

Displays the screen title.

Header

When a Header is specified, the Header [Title] is displayed.

Footer

When a Footer is specified, the Footer [Title] is displayed.
