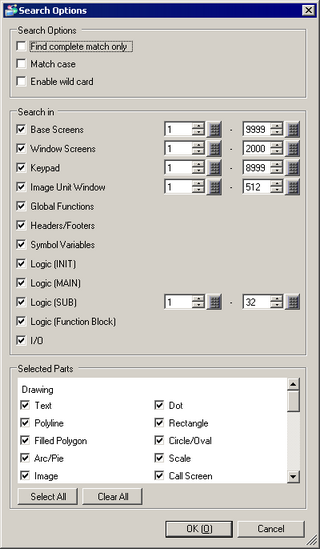

Search Option
Set a search method.
Find complete match only
When the check box is selected, only text with a complete match is found.
When it is not selected, all text is targeted for the search.
When [Find complete match only] is selected, the following search conditions cannot be changed.
Match case option (Selected)
Enable wild card (Not selected)
Replace with text (Not selected)
Match case
When this is selected, search text and found target text are compared and upper case and lower case letters are distinguished.
Enable wild card
When this is selected, wild card search is enabled. Wild card is used in the following methods.
? = match with a letter
For example, in the [Search for text] field enter [Alarm??]
→[AlarmAB] comes up in the search but not [AlarmA], which has less characters than the search string.
* = match any text
For example, in the [Search for text] field enter [Alarm*]
→Both [AlarmA] and [AlarmAB] come up in the search.
Search target
Selects the screen and settings to be searched.
Base Screen
Specifies whether to search the base screen as well as the search range from 1 to 9999.
Window Screens
Specifies whether to search the window screen as well as the search range from 1 to 2000.
Keypad
Specifies whether to search the keypad screens as well as the search range from 1 to 8999.
Image Unit Window
Specifies whether to search the image unit window as well as the search range from 1 to 512.
Header/Footer
Specifies whether to search the header/footer.
Alarm Settings
Specifies whether to search the alarm settings.
Symbol Variables
Specifies whether to search the symbol variable setting.
Logic (INIT)
Specifies whether to search Logic (INIT) screens.
Logic (MAIN)
Specifies whether to search Logic (MAIN) screens.
Logic (SUB)
Specifies whether to search Logic (SUB) screens as well as the search range from 1 to 32.
Logic (function logic)
Specifies whether to search the function logic.
I/O
Specifies whether to search I/O screens.
Selected Parts
Select All
Searches for all parts.
Clear All
Clears all the parts selected for the search.
