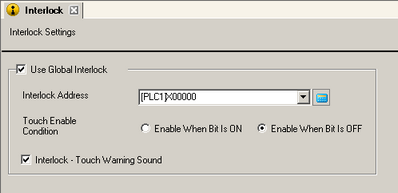

23.10.1.3 Interlock Settings

Use Global Interlock

Sets whether to use Global Interlock or not

Interlock Address

Specifies the bit address (all bit addresses can be set) that represents an Enable condition for allowing touch input. Touch is enabled or disabled depending on the state of this address.

Touch Enable Condition

Select the condition that will enable the part to be touched, to allow input to be entered.

Touch Enable Condition

Interlock Address State

Touch Enabled/Disabled

Enable when Bit is ON

ON

Touch enabled

OFF

Touch disabled

Enable when Bit is OFF

ON

Touch disabled

OFF

Touch enabled

Interlock-Touch Warning Sound

When global interlock is on (when touch is disabled), an alarm is heard indicating touch is disabled.
