23.10.1 Common Settings (Security Settings) Settings Guide
Sets a Line Manager screen with a security level and password. This example uses Sampled Data B2, security level 1 and password 1111.
Security level 0 means no security is set.
From the [Common Settings (R)] menu, point to [Security (Q)] and select [Security Password (P)], or from the toolbar click .

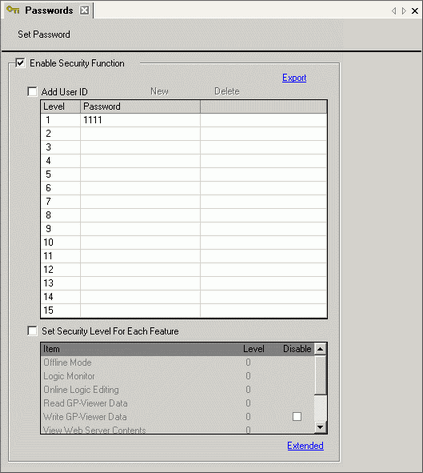

Password setting screen will open. Select the [Enable Security Function] check box, and type the password "1111" in [Level 1].
Set a password up to eight single-byte characters long.
Select the [Add User ID] check box to add the User ID to the Password. As with the password, User IDs can be up to eight single-byte characters long.

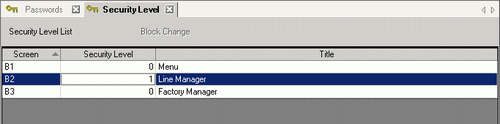

From the [Common Settings (R)] menu, point to [Security (Q)] and select [Security Level List (L)].
For [Sampled Data] B2, set the [Security Level] to 1. The security settings are complete.
Once you log in, the security level you logged in at is enabled until you turn off the power.
If you logged in with high security, and you leave your desk, we recommend clearing the security level first to enhance security.
