The following shows how to set security levels on screens.
23.3 Limiting Screen Access by Authority For details on password settings, see the following.
23.10.1 Common Settings (Security Settings) Settings Guide
Password setting data in CSV format can be created by exporting the password setting of GP-Pro EX in CSV format.
The following shows how to set security levels on screens.
23.3 Limiting Screen Access by Authority
For details on password settings, see the following.
23.10.1 Common Settings (Security Settings) Settings Guide

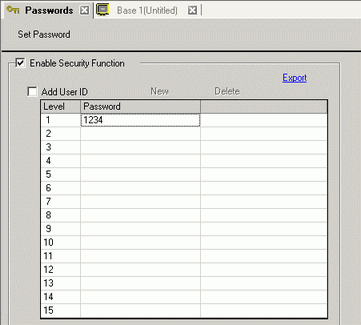

Create [Password] and [ID] on the password setting screen, and then click [Export].
The [Export Passwords] dialog box appears. Specify the [Destination Folder], and click [Run].
Click [Browse] to specify the destination folder on the displayed screen.
The [SECURITY] folder is created in the specified location, and the password setting data with the file name "security.csv" is exported in CSV format.
To copy output data to external storage, copy the folder with the generated data, and paste to the external storage root folder.

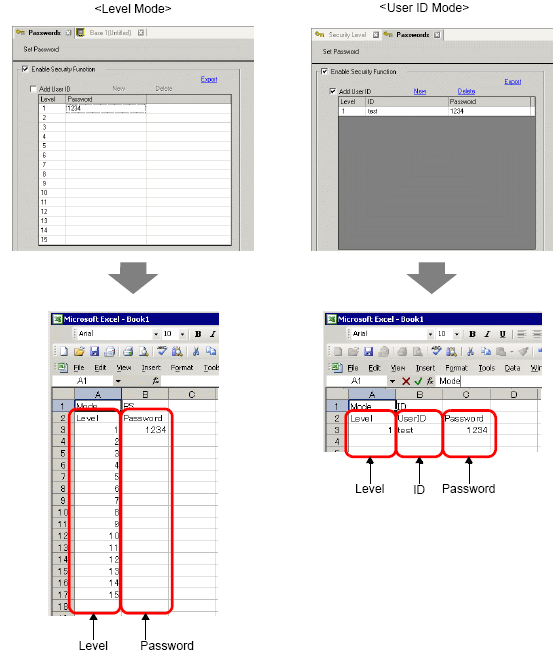

Output data differs depending on the [Add User ID] settings' "Level Mode" or "User ID Mode".
23.11 Password/User ID Input Window
You can also change [Password] and [User ID] on the output "security.csv".
