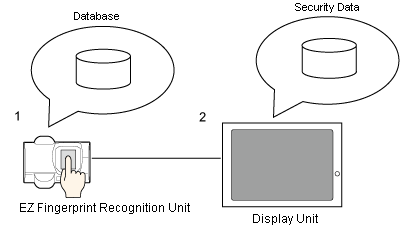

Login is performed using a fingerprint that matches fingerprint data to the user ID/password/level.
Fingerprint recognition contains security data in the display unit, and it is necessary to update this security data in the EZ fingerprint recognition unit database.
Touch the EZ fingerprint recognition unit to verify with the fingerprint database.
Search from matching fingerprint in the security data and login using the registered user ID/password/level.

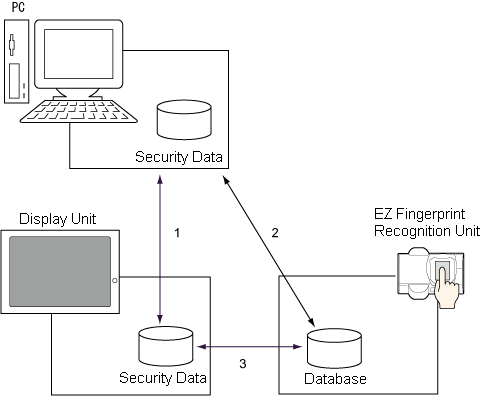

Created environment
Performs transmission/reception of the security data
Performs creation of security data and update of database using the Fingerprint Recognition Setting Tool.
Performs security data creation and update of database using the display unit (from offline mode or from created screens).
Refer to the following for procedures on security data creation and updating the database.
23.9.1 Procedure - Registering fingerprints using the Fingerprint Recognition Setting Tool23.9.2 Procedure - Registering fingerprints online
Make sure you update the EZ fingerprint recognition unit's database with the latest security data. When updating, the existing database is overwritten.
