22.11.10.1 Debug Function

• Summary

Displays the designated address or text on the screen to debug it.
After you finish debugging and you clear the script editor's [Enable Debug Function] check box, none of the scripts are deleted. Only the debug screen does not appear.

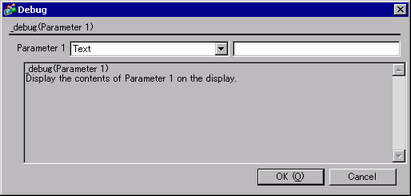

• Format

_debug (Parameter 1)

• Parameter 1: Text (Up to 32 single-byte or 16 double-byte characters)

• Text
  _debug ("ABC")
  Displays the text inside " ". The text can be up to 32 single-byte characters.

• Word address or temporary address
  _debug (w:[PLC1]D1000)
  Displays the value of the set Word Address or Temporary Address.

• Line feed
  _debug (_CRLF)
  Moves the cursor to the start of the next line.

• Return
  _debug (_CR)
  Moves the cursor to the start of the same line.

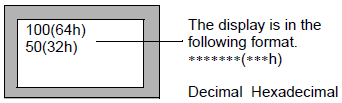

Example expression 1:

The following script displays the value of the Word Address.

[w:[#INTERNAL]LS0100]=100
_debug([w:[#INTERNAL]LS0100])
_debug(_CRLF)
[w:[#INTERNAL]LS0100]=50
_debug([w:[#INTERNAL]LS0100])

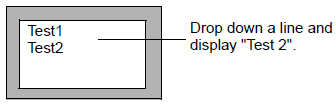

Example expression 2:

The following script displays a line feed and text.

_debug("Test1")
_debug(_CRLF)
_debug("Test2")
