Summary
Initializes all devices at once. The Set data specified with Parameter 2 are set from the Set Word Address specified with Parameter 1 into the addresses specified with Parameter 3. The valid range for the number of addresses is from 1 to 640. The Write-To Address, Write Data, and number of addresses can each be designated indirectly.
Format

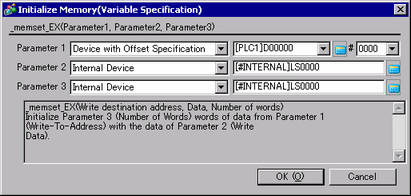

_memset_EX ([Write-To Address], Write Data, Words)
Parameter 1: Device address + Temporary address
Parameter 2: Numeric value, Internal Device, Temporary address (The valid range for Parameter 2 is from [decimal] 0 to 65535, or [hexadecimal] 0 to FFFF).
Parameter 3: Numeric value, Internal Device, Temporary address (The valid range for Parameter 3 is from 1 to 640.)
Example expression:
[t:0000]=10
[w:[#INTERNAL]LS0050]=0
[w:[#INTERNAL]LS0051]=5
_memset_EX([w:[#INTERNAL]LS0100]#[t:0000], [w:[#INTERNAL]LS0050], [w:[#INTERNAL]LS0051])
In the example above, "0" will be written into the five words from LS0100 to LS0114.
