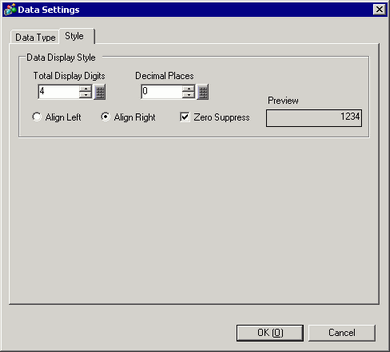

When the data type is [Word 8 Bit]/[Word 16 Bit]/[Word 32 Bit]
Total Display Digits
Select the number of display digits for the data from 1 to 17. This number should be within the range specified in the [Characters] or [Item Name (Horizontal) Characters]. The numbers displayed after the decimal point are also included in the number of digits.
(For example, Total Display Digits is "5", and the Decimal Places is "2")
Decimal Places
Set the number of display digits after the decimal point, from: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].
Align Left/Align Right
Select the data display position.
Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Preview
Preview the selected style.
If the data type is [Bit]/[Text]

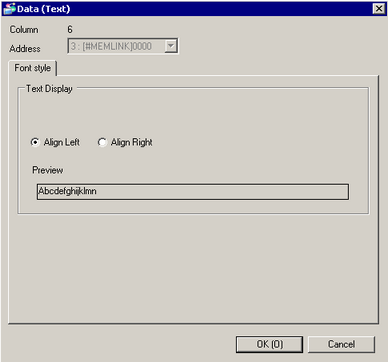

If you selected [Enable multiple data types] in the [Address] tab, when you select a column with [Bit] or [Text]data types and click [Data Type], the following dialog box opens.
Column
Displays the selected column's number.
Address
Displays the selected column address.
Align Left/Align Right
Select the data display position.
Preview
Preview the selected style.
If the data type is [TIME]/[DATE]/[TIME_OF_DAY]/[DATE_AND_TIME]

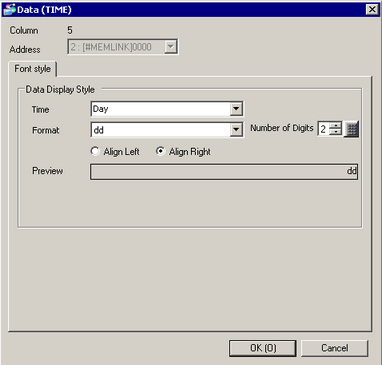

If you selected [Enable multiple data types] in the [Address] tab, when you select a column with [TIME], [DATE], [TIME_OF_DAY], or [DATE_AND_TIME] data types and click [Data Type], the following dialog box opens.
Column
Displays the selected column's number.
Address
Displays the selected column address. You can change the registered address of the sampling group from the list.
Timer
Select a timer item to display.
This option is available when [Data Type] is [TIME].
Date
Specify whether or not to display date. If so, select a date item to display.
This option is available when [Data Type] is [DATE_AND_TIME].
Time of day
Specify whether or not to display time of day. If so, select a time of day item to display.
This option is available when [Data Type] is [TIME_OF_DAY]or [DATE_AND_TIME].
Format
Select the display format for the item selected for the [Timer], [Date], or [Time of day].
Number of digits
Specify the number of digits for the first item.
This option is available when [Data Type] is [TIME].
Align Left/Align Right
Select the data display position.
Preview
Preview the selected style.
