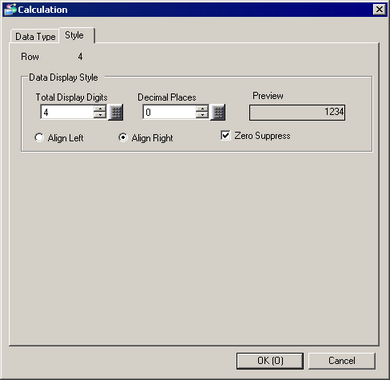

Total Display Digits
Select the number of display digits for the calculation data from 1 to 17. The numbers displayed after the decimal point are also included in the number of digits.
For example,
When the Total Display Digits is 5, and the Number of Decimal Places is 2, it will look as follows:
Decimal Places
Set the number of display digits after the decimal point: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].
Align Left/Align Right
Select the calculation data display position.
Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Preview
Preview the selected style.
