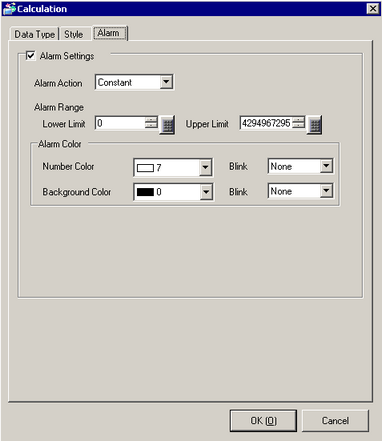

Alarm
Designate whether or not to use alarm display (change the calculation data color when the value goes outside of the alarm range).
Alarm Action
Select the action when the alarm is active from [Constant] or [Address].
Please refer to the following for models that support alarm range addressing for Sampling.
1.5 Supported Features
Alarm Range
Set the Alarm Range. The calculated data is handled with 32 bits.
When [Alarm Action] is [Constant]
Set the [Upper Limit] and the [Lower Limit] within the following range.
Data Type |
Sign +/- |
Display Range |
|---|---|---|
Dec |
Disable |
0 to 4294967295 |
Enable |
-2147483648 to 2147483647 |
|
Hex |
- |
0 to FFFFFFFF(h) |
BCD |
- |
0 to 99999999 |
Float |
Selected (Fixed) |
-9.9e16 to 9.9e16 |
When [Alarm Action] is [Address]
Specify the address where the [Upper Limit] is stored. The address for the [Lower Limit] increments from the [Upper Limit] address.
When the specified address is 16 bit
When the specified address is 32 bit
Numeral Value Color
Select the numeric value color for when the Alarm is displayed.
Background Color
Select the background color for when the Alarm is displayed.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Numeric Value Color] and [Background Color] in the alarm color.
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]). 1.6 Supported Colors
