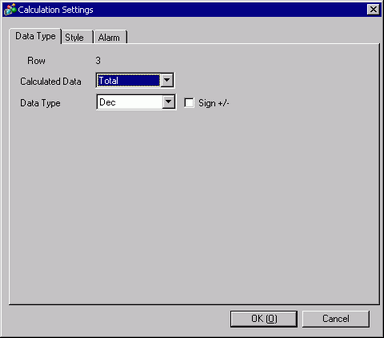

Select a Calculation row in the Preview area, click [Row Details], and the following dialog box will be displayed.
Row Number/Column
Displays the selected Calculation row or Calculation cell row number/column number.
Calculated Data
Choose the data calculation type from [Total], [Average], [Max], or [Min]. Values calculated from the data of the designated Occurrences stored in the display unit are displayed.
Data Type
Choose the data type from [Dec], [BCD], [Hex], or [Float].
[Float] can only be selected when the set [Bit Length] is [32 Bit] on the [Address] tab.
When [BCD] is selected, sampling data containing the digits A-F (hexadecimal) other than BCD will be displayed/saved in CSV with "----" (Number of digits "-").
Sign +/-
Designate whether or not to attach a minus sign to data. This can only be set when the [Data Type] is [Dec].
This is fixed when the [Data Type] is [Float].
Round Off
Designate whether or not to round off fractional values when converting input values to the display range. Fractional values are truncated if rounding off is not selected. This setting is available when [Data Type] is [Float].
