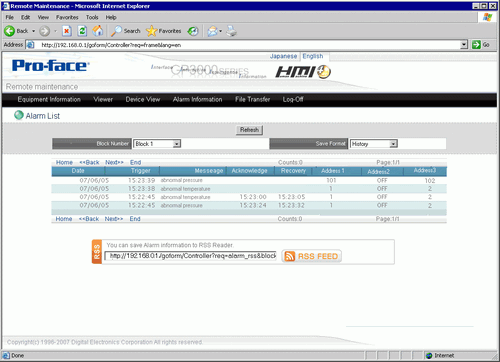

Refresh
Updates alarm information and displays the latest information from the GP.
Block Number
Specifies the alarm block number (1 to 8) set up on the display unit.
Save Format
Selects the alarm [Display Mode]: [History], [Log], or [Active].
Start
Displays the first line of the alarm.
Back
Moves back to the previous page.
Next
Moves to the next page.
End
Displays the last line of the alarm.
Alarm Display Frame
Displays alarm information.
Date
Displays the date and time when the alarm was triggered.
Trigger
Displays the time when an alarm is triggered.
Message
Displays the alarm message.
Acknowledge
Displays the time when an active alarm is acknowledged.
Recovery
Displays the time when an alarm is recovered.
Addresses 1 to 8
The data values when Alarms are triggered are displayed for the address specified in [Alarm].
For more details, please refer to the following.
20.12.1.2 Alarm Settings (Block 1) - Bit Monitoring or 20.12.1.3 Alarm Settings (Block 1) - Word Monitoring
RSS
Displays alarm information as RSS data. The RSS URL displays whenever changing the [Block Number] or [Save Format]. RSS data is displayed by inputting this URL into the address part of the RSS reader.
Supported RSS reader applications are listed on the Pro-face support site (http://www.pro-face.com/trans/en/manual/1001.html).
RSS FEED
You can register the URL of an RSS feed to the RSS reader. Operation of RSS feeds depend on your RSS Reader.
