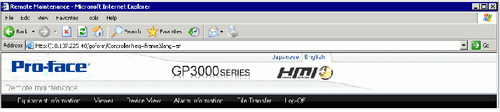

37.13.1 Standard Template HTML - Header Frame

The header frame is common to all page headings, except when logged off. Using the buttons in this frame, you can jump to each page.

Title

Displays the title of a Web page.

Equipment information

Displays GP-Pro EX project settings.

Viewer

When GP-Viewer EX is installed, starts the GP-Viewer EX application.

Device View

Monitors device addresses of devices or PLCs connected to the display unit.

Alarm information

Displays alarm information accumulated in the display unit.

File transfer

Use Internet Explorer as a FTP client. You can access the data on the external storage connected to the display unit.

Log off

Disconnects from the display unit and closes the window.

Japanese/English

Switches between the Japanese and English versions of the standard HTML template.
