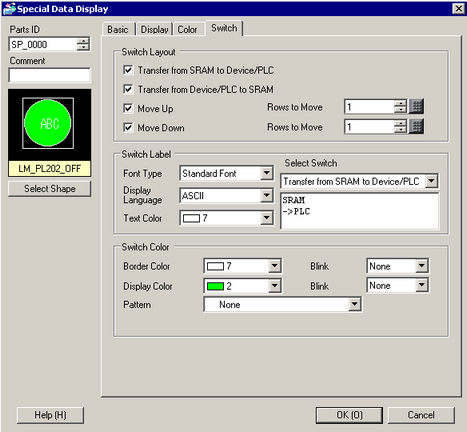

26.16.1.4 Filing Display - Switch

Transfer from SRAM to Device/PLC

Select to place a switch to transfer filing data from backup memory (SRAM) to the device/PLC.

Transfer from Device/PLC to SRAM

Select to place a switch to transfer filing data from the device/PLC to backup memory (SRAM).

Move Upward

Select to place a switch to move the cursor up.

Move Downward

Select to place a switch to move the cursor down.

Rows to Move

When you place a [Move Upward] or [Move Downward] switch, enter how many rows to move when pressed. The setting range is from 1 to 2048.

Font Type

Choose the label font for the switches from [Standard Font] or [Stroke Font].

Display Language

Select a language for the label on the switch from [Japanese], [ASCII], [Chinese (Traditional)], [Chinese (Simplified)], [Korean], [Russian (Cyrillic)], or [Thai].

Text Color

Select the font color that will display on the switch labels.

Select Switch

Select the switch that you want to type a label for.

Label

Enter the text that you want to display on the switch selected in [Select Switch].

Border Color

Select a border color for the Switch.

Display Color

Set the switch color.

Pattern

Select the switch pattern from 9 types.

Pattern Color

Select the switch pattern color.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Border Color], [Display Color] and [Pattern Color].
