26.9.3.3 File Manager - Switch

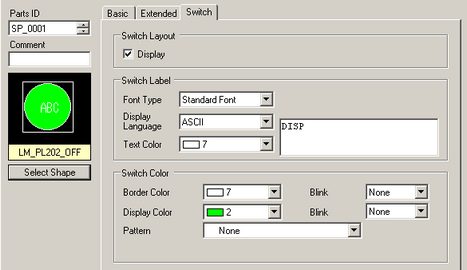

Configure the parameters for the Display switch used to call up the [File Manager] Display from a base screen.

Part Shape

Displays the shape that you chose for the switch with [Select Shape].

Select Shape

Open the [Select Shape] dialog box to choose the switch shape.

Switch Layout

Display

Designate whether or not to place a switch to display a [File Manager] Display on the base screen.

Switch Label

Font Type

Choose the label font for the switches from [Standard Font] or [Stroke Font].

Display Language

Select a language for the label on the switch from [Japanese], [ASCII], [Chinese (Traditional)], [Chinese (Simplified)], [Korean], [Russian (Cyrillic)], or [Thai].

Text Color

Select the font color that will display on the switch labels.

Label

Enter the text that you want to display on the switch selected in [Select Switch].

Switch Color

Border Color

Select a border color for the Switch.

Display Color

Set the switch color.

Pattern

Select the switch pattern from 9 types.

Pattern Color

Select the switch pattern color.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Border Color], [Display Color] and [Pattern Color].

  • Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
